Helium for Welding Manufacturers & Fabricators in Texas
Reliable Helium & Helium-Blend Welding Gas Supply for Fabrication, Manufacturing & Precision Welding Operations
Southwest Gases supplies helium and helium-argon blends to fabrication shops and manufacturers across Texas. Cylinders and certified blend programs matched to the metal and thickness you run, on delivery intervals sized to what your shop actually burns.
Trust indicators
- Helium Shielding Gas
- Reliable Delivery Scheduling
- Fabrication Industry Support
- Texas Industrial Coverage
Why Helium Is Used in Industrial Welding & Fabrication
Helium has an ionization potential of 24.6 eV against argon at 15.8 eV. At the same amperage, a helium-shielded arc therefore runs at a higher voltage and puts more energy into the joint. Its thermal conductivity is also around eight times argon’s, which spreads that energy outward instead of concentrating it at the center of the arc.
The difference shows in the bead. Pure argon produces a narrow, deep, finger-shaped penetration profile. Adding helium widens that profile and improves wetting at the toes of the weld. That is why helium earns a place on thick sections, on metals that conduct heat away quickly, and on work where travel speed is the constraint.
We supply welding helium to metal fabricators, aerospace and automotive manufacturers, energy equipment builders, pressure vessel shops and structural steel fabricators across Texas.
Common Helium Welding Applications
TIG Welding
Adding helium to an argon TIG shield raises arc voltage and heat input at the same amperage. The practical gain is travel speed: you can move faster for the same penetration, so total heat into the part per inch of weld can drop, which helps with distortion on longer joints. Two trade-offs come with it. Helium is harder to strike because of that ionization potential, so high-frequency or capacitive arc starting matters more. And a helium arc is more sensitive to arc length, since a small change in torch height moves voltage further than it would under argon.
MIG Welding
On GMAW, helium additions raise heat input and support faster travel on thick sections. Pure helium is rarely used because it promotes globular transfer instead of spray, with pure copper as the main exception. In practice helium arrives in blends: argon-helium for aluminum and copper alloys, and a helium-heavy tri-mix for stainless. Expect to re-tune voltage when you change blend, because the same wire feed setting will not reproduce the same arc.
Aluminum Fabrication
Pure argon handles most aluminum up to about a quarter inch. Past that, aluminum pulls heat out of the joint faster than an argon arc replaces it, and incomplete fusion at the root becomes the failure mode. Seventy-five percent argon with 25 percent helium is the usual first step and adds roughly 15 to 20 percent more heat input. Over half an inch, shops move to 50/50, and heavy plate on mechanized equipment sometimes runs 25/75. A 2 to 1 helium-to-argon mix has also been shown to reduce porosity in production aluminum work by widening the usable parameter window.
Stainless Steel Fabrication
Short-circuit MIG on stainless is where the classic tri-mix lives: 90 percent helium, 7.5 percent argon, 2.5 percent carbon dioxide. Helium carries the heat for wetting and bead shape while the CO2 stays low enough to protect corrosion resistance, and the blend works in all positions with a flatter bead than argon-CO2 mixes. On thin stainless where cost matters more than finish, 98 percent argon with 2 percent CO2 is the cheaper route and does the job.
Copper & High-Conductivity Metals
Copper is the one place pure helium still earns its keep on GMAW. Copper conducts heat so well that an argon arc struggles to establish a puddle without heavy preheat, and helium’s extra arc energy substitutes for some of that preheat. The same reasoning applies to copper alloys and to parts of nickel alloy work. These tend to be low-volume, high-value jobs, so gas cost per part is rarely what decides the process.
Helium-Argon Blend Applications
Most helium in a fabrication shop is bought as a blend, because the useful ground sits between the two gases. Argon gives arc stability and easy starting. Helium gives heat and travel speed. The ratio comes from material, thickness and whether the torch is in a hand or on a machine, since above roughly 50 percent helium the arc gets harsh enough that mechanized equipment handles it better than a welder does. We supply standard ratios and blend to specification where a procedure calls for one.
Serving Welding & Fabrication Facilities Across Texas
We deliver welding helium and helium blends to fabrication shops across Houston, Dallas, Fort Worth, Austin and San Antonio, with Houston routes reaching the Gulf Coast manufacturing corridor.
Texas fabrication is not one market. Structural and plate work sits around the metros, pressure vessel and process equipment fabrication runs along the Gulf Coast, aerospace and precision manufacturing concentrate in North and Central Texas, and energy equipment fabrication follows the oil and gas supply chain. Blend selection looks different in each of them. Shops outside those metros should ask about route coverage.
Helium Supply Solutions for Welding & Fabrication Facilities

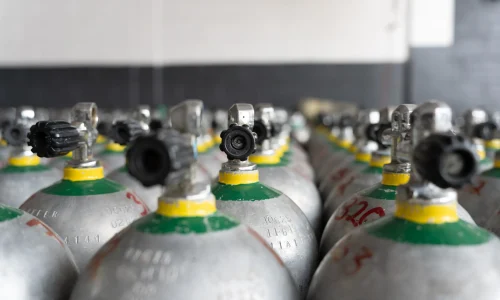

High-Pressure Helium Cylinders
Single cylinders suit small fabrication shops, mobile welding crews and occasional specialty work. Sizes run from portables up to 300 cubic foot cylinders on a CGA 580 outlet, the same connection as argon. Plan consumption carefully, because helium needs roughly double argon's flow rate for equivalent coverage and a cylinder will not last as long as its volume suggests.

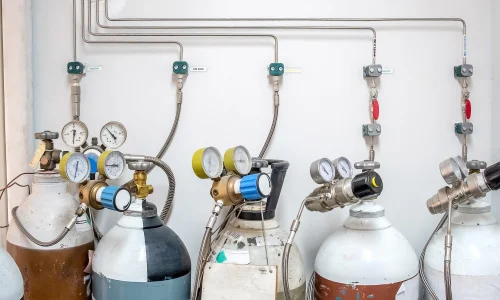

Helium-Blend Cylinder Programs
Production welding runs better on pre-blended certified cylinders than on gas mixed at the bench, since a certified blend removes a variable from procedure qualification. We supply standard argon-helium ratios and stainless tri-mix, and we blend to a specific ratio where a WPS calls for one. Multiple stations on the same blend can be manifolded so every booth draws from one certified lot.
Scheduled Delivery Programs
High-volume fabrication and multi-shift plants run on standing delivery set from measured consumption. We move the interval as job mix changes, since a month of heavy aluminum plate burns gas at a very different rate than a month of thin stainless. Multi-site operations can run one agreement with delivery and billing split by plant.
Reliable Welding Gas Supply Backed by Local Texas Industrial Support
Two numbers decide whether a helium blend pays for itself. Helium costs roughly three to five times what argon costs per cubic foot, and it needs about double the flow rate for the same shielding coverage because it is lighter than air. A 25 percent helium blend therefore costs a good deal more per arc hour than 25 percent implies. The case for it has to come from travel speed, fewer passes or rework you stop doing.
For plenty of shops that case does not close, and pure argon covers most aluminum under a quarter inch and most TIG work outright. Where a blend does pay, our specialists size it against your material and thickness, keep the certified lot consistent across booths, and hold delivery on a schedule your production sets. Southwest Gases has been supplying Texas fabricators for over 30 years, and accounts stay with one specialist.
Get a Reliable Helium Supply Partner for Your Welding Operation
Helium and certified helium-argon blends matched to your material, thickness and welding procedure, delivered across Texas on a schedule your production sets. Call 214-432-6583 or email sales@southwestgases.com.
Frequently Asked Questions
For heat. Helium has an ionization potential of 24.6 eV against argon at 15.8 eV, so at the same amperage a helium-shielded arc runs at higher voltage and delivers more energy to the joint. That allows faster travel for the same penetration, which helps on thick sections and on metals that conduct heat away quickly. Most TIG work does not need it, and pure argon remains the default for the majority of applications.
Yes, and it changes the shape as well as the depth. Pure argon gives a narrow, deep, finger-shaped penetration profile. Helium’s thermal conductivity is around eight times argon’s, which spreads heat outward and produces a wider profile with better wetting at the toes of the bead. On thick material that combination gives more usable fusion. On thin material the same heat becomes a problem.
Aluminum, copper and copper alloys, and some nickel alloys, all of which conduct heat away from the joint faster than an argon arc supplies it. Stainless benefits differently, through the helium-based tri-mix used for short-circuit MIG. Carbon steel rarely justifies helium, since argon-CO2 blends handle it at a fraction of the cost.
Yes. We supply standard ratios including 75/25 and 50/50 argon-helium, higher-helium blends for mechanized work, and the 90/7.5/2.5 helium-argon-CO2 tri-mix for stainless. Where a welding procedure specifies a ratio we do not stock, we blend to it and certify the lot.
In blends, yes. Pure helium is rarely used on MIG because it promotes globular rather than spray transfer, with pure copper the main exception. Argon-helium blends are standard for thick aluminum and copper alloys, and helium-based tri-mix is standard for stainless. When you change blend, plan to re-tune voltage, because the same settings will not reproduce the same arc.
Yes. We deliver to shop floors across Houston, Dallas, Fort Worth, Austin and San Antonio on scheduled routes. Delivery includes the cylinder swap and a connection check rather than a drop at the dock, and cylinders can be staged at several points in a large shop.
Start with material and thickness, then account for whether the torch is handheld or mechanized. Aluminum under a quarter inch usually needs no helium at all. A quarter to a half inch typically starts at 75/25 argon-helium. Over half an inch moves toward 50/50, and heavy mechanized work goes higher. Above roughly 50 percent helium the arc becomes harsh enough that automated equipment handles it better than a welder does. If the weld is procedure-qualified, the WPS decides and we supply to it.
Yes. We run 24/7 emergency dispatch across our Texas service area. Call 214-432-6583 with the blend, cylinder size and shop location, and we will confirm what we can move and when.
Two factors stack up. Helium runs roughly three to five times argon’s cost per cubic foot, and it needs about double the flow rate for equivalent shielding because it is lighter than air and drifts off the puddle. The increase per arc hour is therefore steeper than the blend percentage suggests. The justification has to come from travel speed, fewer passes or reduced rework rather than from the gas itself.
Higher than you would run on argon. Where straight argon typically runs 8 to 12 liters per minute on TIG, a helium-rich shield often needs close to double. Stainless tri-mix on MIG commonly runs 30 to 40 CFH. There is a ceiling, though: once flow passes the point where the nozzle can still deliver laminar flow, the turbulence pulls air into the shield and starts causing the porosity you were trying to prevent.
