Helium for Industrial Leak Detection in Texas
Reliable High-Purity Helium Supply for Vacuum Leak Testing, Pressure Testing & Industrial Tracer Gas Applications
Southwest Gases supplies helium for industrial leak detection across Texas. We deliver tracer-grade helium in cylinders and packs, along with blended helium-nitrogen mixes, sized to your test method and reject limit and scheduled around production test cells and field service work.
Trust indicators
- High-Purity Helium
- Reliable Delivery Scheduling
- Industrial Testing Support
- Texas Coverage
Why Helium Is the Preferred Gas for Industrial Leak Detection
Leak testing is a measurement, and helium is the tracer that produces a usable number over the widest range. A mass spectrometer leak detector tuned to mass 4 resolves rates from gross leaks down to around 1 x 10 to the minus 11 mbar L/s, which means one instrument and one gas cover eight decades of leak size.
Four properties do the work. Helium is the smallest atom after hydrogen, so it enters paths that stop other gases. It is chemically inert and will not react with the part under test. It is non-flammable and non-toxic at the concentrations used. Ambient air holds only about 5 ppm helium, which leaves a low enough background to read a small signal against.
One limitation is worth knowing before you write a test spec. Helium permeates some elastomers and plastics, so on parts with O-rings or polymer housings the gas can pass through the material itself and register as a leak that is not there. Dwell times and reject limits have to account for it.
We supply leak detection helium to aerospace, semiconductor, HVAC and refrigeration, automotive, medical device and petrochemical operations across Texas.
Common Industrial Leak Detection Applications
Vacuum Leak Testing
Helium provides highly sensitive vacuum leak detection. The component is evacuated while helium is sprayed around joints and connections, allowing the detector to quickly identify leaks and pinpoint their location. Calibrated systems can detect leaks down to approximately 10⁻¹¹ mbar L/s.
Pressure Testing
Pressure vessels, heat exchangers, and pipe spools can be charged with helium or a helium-nitrogen mix and checked externally with a sniffer probe. Accumulation testing offers an alternative by collecting helium around the suspected leak for improved sensitivity.
Refrigeration & HVAC Systems
Refrigeration and HVAC manufacturers use helium, often mixed with nitrogen, to detect leaks in coils, compressors, and evaporators. Service teams can also pressurize systems with helium to locate faults before refrigerant charging, reducing unnecessary refrigerant loss.
Semiconductor Equipment Testing
Semiconductor fabs use helium leak testing to qualify vacuum tools and UHP gas systems. Inboard testing can achieve extremely low leak-rate limits, commonly around 1 × 10⁻⁹ atm cc/s or lower. We supply helium for fabs and semiconductor equipment qualification contractors.
Aerospace Component Testing
Aerospace components such as fuel systems, hydraulic actuators, valves, and sealed avionics housings require highly sensitive leak testing. Helium bombing exposes components to pressurized helium before vacuum testing, allowing detectors to identify extremely small leak paths and document results.
Reliable Helium Supply Backed by Local Texas Industrial Support
A mass spectrometer leak detector is tuned to mass 4, so impurities in the tracer gas do not create a false signal and do not change the sensitivity of the test. What purity buys is protection for the part and the system you are putting gas into. A clean vacuum chamber or a medical device cavity justifies a higher grade. A pressurized casting on a production line does not, and industrial grade at 99.995 percent covers most tracer work.
Our specialists size cylinders, mixes and manifolds against your test method and cycle time. Delivery intervals move with production volume, scheduled accounts hold priority allocation when supply tightens, and 24/7 emergency dispatch covers a test cell that runs dry mid-shift. Southwest Gases has been supplying Texas plants and contractors for over 30 years, and accounts stay with one specialist.
Helium Supply Solutions for Leak Detection Operations

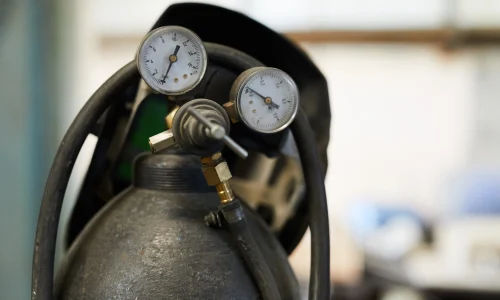

High-Pressure Helium Cylinders
Single cylinders cover portable leak detection, service technicians and small test stations. Sizes run from portables that fit a service van up to 300 cubic foot cylinders on a CGA 580 outlet. For field work, specify a two-stage regulator and a fine spray probe, since what you want at a joint is a small steady flow rather than volume.

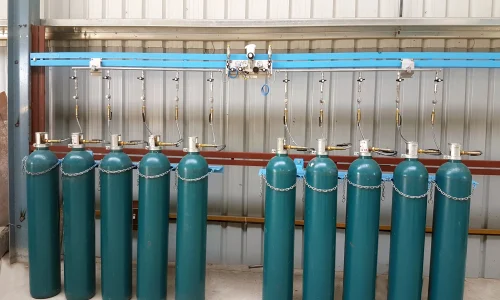

Manifolded Cylinder Systems
Multiple test stations and production lines run better on a helium manifold system with automatic changeover, which keeps a test cell producing when a cylinder empties. We size for two-bank operation so one side refills while the other stays online. On high-throughput lines the manifold is often paired with a recovery loop, because gas leaving a test fixture is usually clean enough to compress and reuse.

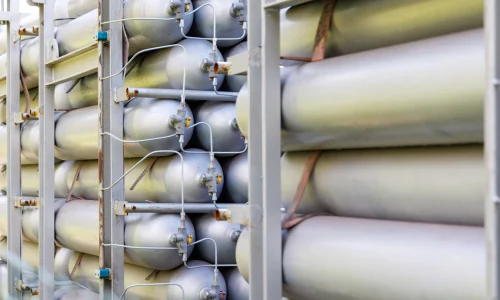

Scheduled Delivery Programs
Scheduled industrial gas delivery works from measured consumption, which for leak testing means parts per shift rather than a calendar interval. We revise the interval as production volume moves and as mix ratios change. Multi-site operations can run a single agreement with delivery scheduled and billed by plant.
Serving Industrial Leak Detection Operations Across Texas
We deliver leak detection helium to Houston, Dallas, Fort Worth, Austin and San Antonio, with Houston routes reaching the Gulf Coast industrial corridor and the refining, petrochemical and fabrication work along it.
The account base spans manufacturing plants running production test cells, industrial maintenance and inspection contractors, third-party testing laboratories, and field service teams working refrigeration, pressure equipment and process systems. Sites outside the metros should ask about route coverage, since we add stops where testing volume supports a regular run.
Get a Reliable Helium Supply Partner for Your Leak Detection Operation
Tracer-grade helium and blended helium-nitrogen mixes, sized to your test method and reject limit, delivered across Texas with 24/7 support. Call 214-432-6583 or email sales@southwestgases.com.
Frequently Asked Questions
Four properties line up at once. Helium is the smallest atom after hydrogen, so it travels through leak paths that block other gases. It is inert, so it will not react with the part being tested. It is non-flammable and non-toxic. And it makes up only about 5 ppm of ambient air, so there is very little background signal for a real leak to hide behind. Forming gas, a 5 percent hydrogen blend in nitrogen, is the main lower-cost alternative, though it runs around three orders of magnitude less sensitive in comparable setups.
Industrial grade at 99.995 percent covers most leak testing. Because the detector is tuned to mass 4, impurities in the helium neither create a false reading nor reduce sensitivity. Higher grades are worth specifying when the gas enters something that has to stay clean, such as a vacuum chamber, a UHP gas line or a sealed medical device. For pressurizing castings, weldments or automotive assemblies, ultra high purity adds cost without adding test performance.
Yes. A calibrated helium mass spectrometer leak detector resolves to roughly 1 x 10 to the minus 11 mbar L/s in hard vacuum mode. To put that in scale, a leak of 1 x 10 to the minus 9 atm cc/s releases about one cubic centimeter of gas over 30 years. Sniffer testing is much less sensitive, typically around 10 to the minus 6 mbar L/s, because the probe samples room air rather than a vacuum.
Yes. We supply helium for hard vacuum and hood testing, for accumulation methods and for sniffer work, in cylinders, packs and blended mixes. Vacuum testing usually calls for a cleaner grade than pressure testing, since the gas is introduced around equipment that has to hold vacuum afterward.
Helium is non-flammable, non-toxic and chemically inert, which is a large part of why it became the standard tracer. The real hazards are the ordinary ones for compressed gas: cylinder handling, stored pressure, and oxygen displacement in confined or poorly ventilated spaces. Leak testing inside vessels, pits or small enclosed rooms should be treated as confined space work with monitoring in place.
Aerospace, semiconductor and vacuum equipment, medical devices, automotive, HVAC and refrigeration manufacturing, petrochemical and refining, power generation, and any operation building pressure vessels or heat exchangers. Third-party inspection and testing firms are a large user group too, since much of this work is contracted rather than done in-house.
Yes. Scheduled delivery covers Houston, Dallas, Fort Worth, Austin and San Antonio, with Gulf Coast coverage from the Houston routes. Intervals are built from parts tested per shift rather than a fixed calendar, and revised when production volume or mix ratio changes. Scheduled accounts hold priority allocation during tight supply.
Yes. We run 24/7 emergency dispatch across our Texas service area. Call 214-432-6583 with your grade, mix ratio and connection type, and we will confirm what we can move and when.
Yes, and it is standard practice on production lines. Diluting to 10 percent helium in nitrogen cuts helium consumption by 90 percent. The trade is that the reject limit has to tighten by the same factor: a part specified at 1 x 10 to the minus 5 atm cc/s on pure helium is tested at 1 x 10 to the minus 6 on a 10 percent mix, because only a tenth of the gas passing through the leak is helium. A 10 percent mix still supports detection near 10 to the minus 7 mbar L/s, which covers most commercial work. We blend to specification and deliver the mix ready to use.
The three scales in common use are close but not interchangeable. 1 mbar L/s is about 0.99 atm cc/s and 0.1 Pa m3/s. So mbar L/s and atm cc/s can be treated as roughly equal in practice, while swapping either of them with Pa m3/s introduces a factor of ten. Standard cc per second (sccs) is effectively the same as atm cc/s. Confirm which unit a drawing or specification uses before you set a reject limit.
